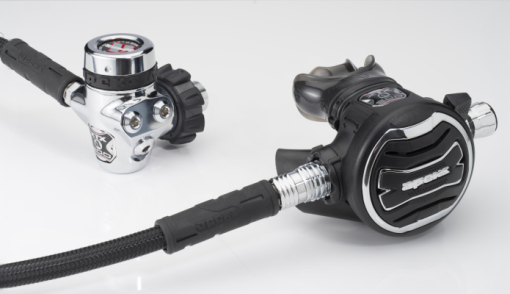

XTX200 Regulator DIN

The XTX200 regulator can be converted from a right handed hose configuration (as supplied from the APEKS factory in the standard) to a left handed one. This regulator also features a Reversible Venturi System (RVS). Changing the regulator to a left handed configuration is both quick and simple and can be performed by any APEKS Authorized Service Technician.

The XTX200 regulator incorporates the new feature of the Diver Changeable Exhaust System (DCE). This system gives the diver the ability to change from a small exhaust to a large exhaust tee. This gives the user a choice of the wider exhaust tee for minimal bubble interference (essential for underwater photography) and the narrow exhaust tee for a smaller compact comfortable regulator (ideal for travel or for use as an octopus regulator). The exhausts are made from strong, yet lightweight material, essential for the diving environment.

The XTX200 regulator incorporates a new front cover manufactured using high strength plastic which greatly improves the durability of the most vulnerable part of the demand valve and an aesthetically pleasing chrome plated metal insert immediately identifying this regulator as a top of the range model.

The new purge button has improved the purge itself. Due to the new open design the purge is self clearing and prevents debris build-up.

The new ergonomic Venturi lever of the XTX200 has been designed to reduce the amount of grit ingress and also incorporate an index-able, tactile / audible ratchet Venturi lever mechanism.

A new swivel hose connection is available at an extra cost. This allows the demand valve end of the hose connection to rotate and pivot, providing a more comfortable fit.

A new silicone exhaust valve has been used on the XTX200 regulator improving breathing performance.

First Stage:

• FSR style first stage.
• Highly polished bright chrome plating.
• Compact one piece body.
• 4 angled medium pressure ports, 4 x 3/8” UNF.
• 2 angled high pressure ports, 2 x 7/16” UNF.
• Optional 5th port.
• Removable ARCAP valve seat.
• Unique over-balanced, diaphragm design – as the diver descends, the over-balancing feature allows the medium pressure gas in the hose to increase at a rate faster than ambient. This results in superior performance at depth.
• An environmental dry system keeps water out of the main spring chamber thus preventing ice buildup and keeping silt and contamination out.

Second Stage:

• Pneumatically-balanced second stage results in smooth, easy breathing.
• The XTX purge buttons are large and easy to operate. A 2-stage progressive purge is used – press the purge on the side for a lower flow rate, useful where more control is required such as filling lift bags etc, then press in the centre for the full effect of the purge, i.e. when regulator clearing etc.
• The large venturi lever has a soft touch rubber grip, which makes it easier to locate and use. The lever reduces the amount of grit ingress and therefore resists any possible friction giving a smooth operation.
• Easy-to-grip opening effort control knob keeps the diver in control.
• The second stage is manufactured with active protection against infection as all molded parts are produced with an additive that kills MRSA, protects against E-Coli, bacteria and fungi, and is also very effective against viruses, mould, yeast and algae.
• A silicone exhaust valve improves the breathing performance of the regulator.
• A heat exchanger (patented) which surrounds the valve mechanism, dissipates the cold caused by gas expansion while drawing in the warmth of the ambient water.
